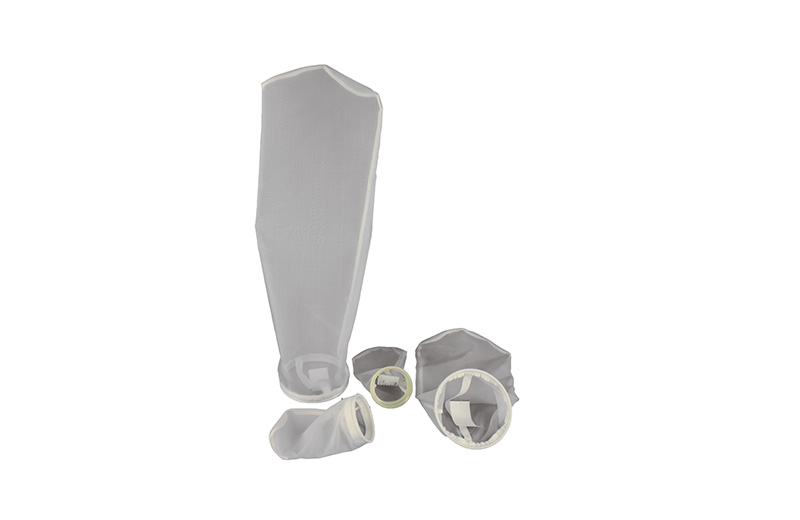

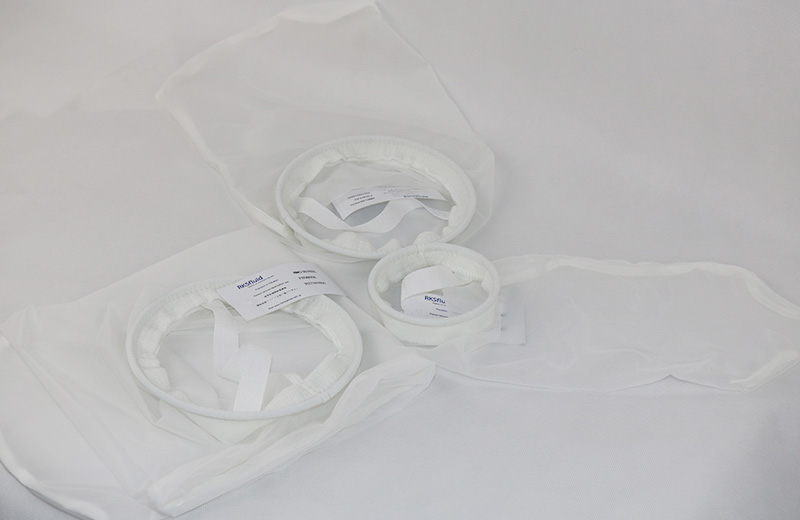

The nylon filter bag is made of PA66 monofilament woven into a mesh filtermaterial, which belongs to fixed pore size and fixed value filration. The accuracyrange of the product is 15 m to 1200 m,which can effectively intercept all kindsof hard and large particle impurities. Nylon material can withstand highertemperatures, the fiber is not easy to deform, and has good tensile strength. Nylonfilter bags have the advantage of high throughput ability, and are suitable for filter-ing large impurity particles or pre-filtration, coarse filtration and other occasionswhere filtration accuracy is not high.
Industry Expertise
Factory Price
OEM/ODM Services
| Project | Bag No.1 | Bag No.2 | Bag No.3 | Bag No.4 |
| Filtration area(㎡） | 0.25 | 0.48 | 0.1 | 0.15 |
| Caliber(mm) | 180 | 180 | 102 | 102 |
| Length(mm) | 420 | 810 | 230 | 380 |
| Maximum operating temperature | PP＜90°C、PE＜120°、PTFE＜260°、NYLON＜150° | |||
| Differential pressure replacement | ＜1.2bar | |||
| CF Brand code | PO Material | 1 Filtration accuracy | P Overlay | 02 Filter bag size | E Ring mouth |
| CIRCOR FILTER | PO-polypropylene PE-polyester HT-polyarylamide PT-PTFE | 1--1um 15--15um 25--25um 1200--1200um | P-Uncovered (Outer Surface) N-nylon overlay | 01-Bag1 02-Bag2 03-Bag3 04-Bag4 | E-polypropylene ring H-polyester ring A-Stainless steel ring S-Galvanized steel ring R-Rope Strap |
Core advantage
Nylon monofilament cross point heat setting treatment, the product apertureis not easy to deform, and the tensile strength is high.
The mesh structure has a fixed pore size, fixed value filtration, and goodstability.
Strengthen the seam edge of the outer lining to make the sealing structuremore stable.
It is suitable for the filtration of high viscosity materials and hard particulateimpurities.
Filter bags have complete specifications, providing No. 1, 2, 3, 4 standardbags,according to the actual needs of customers, non-standard size and shapedesign can be provided.
According to the actual operating conditions, plastic pressure-sensitive sealingrings with good sealing properties or economical and durable stainless steelrings and galvanized carbon steel rings can be selected.
Are you the actual manufacturer?
Yes, we are a direct factory. We control the entire process—from cutting the fabric to welding the rings. Buying from us means you get factory-direct pricing and better quality control than a trading company.
Will these bags fit my current housing (from another brand)?
Absolutely. Our ProClean bags follow Standard Universal Specs. If you have a standard Size #1 or #2 housing, our bags will "snap" right in with a perfect seal.
How fast can you ship? I`m running low on stock.
We keep a massive inventory of standard ProClean bags (0.5, 1, 5, 10, 15, 25, 50, 100 micron), and all orders ship within one week.
Can I get a sample to test the fit?
We`d love to send you one! We are confident in our ProClean quality and want you to see the difference in your own plant. Contact us today for a free sample bag.
What certifications do you provide?
Every shipment can be provided with a Material Certificate and a Certificate of Conformance (CoC). We use FDA-compliant materials for food-grade orders to ensure your plant stays in full compliance.
