The product is suitable for all kinds of air conditioning and ventilationsystems. It has a good effect on air odor and air pollution in the centerof the air conditioning and ventilation system, and can effectively cleanthe air. The filter bag is composed of high-efficiency adsorptionactivated carbon fiber and filter cotton, with strong surface adsorptioncapacity, which can effectively control air and organic pollution in theair and solve the air filtration in general air-conditioning and ventilation places.
Industry Expertise
Factory Price
OEM/ODM Services
| Category | Parameter | Specifications / Details |
|---|---|---|
| Construction | Frame Material | Aluminum Alloy / Galvanized Steel / Beverage Board |
| Filter Media | Synthetic Polyester Fiber (Washable) | |
| Support Grid | Expanded Aluminum Mesh / Powder Coated Wire | |
| Standard Size | 592 × 592 × 46 mm (24"×24"×2") | |
| Performance | Efficiency Rating | G4 (EN779) / MERV 8 (ASHRAE 52.2) |
| Rated Airflow | 3400 m³/h | |
| Initial Resistance | ≤ 45 Pa | |
| Final Resistance | 200 - 250 Pa (Recommended) | |
| Environment | Max. Temp | 80°C (176°F) |
| Max. Humidity | 100% RH |
Core Advantages

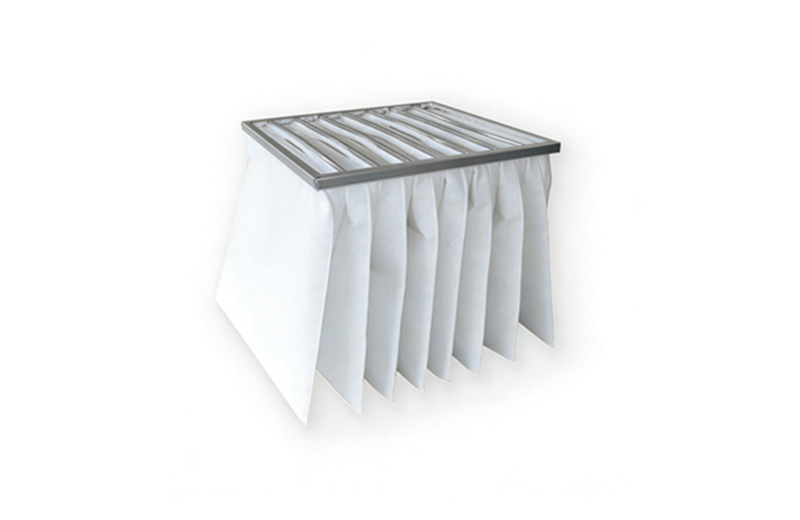

Type: Multi-bag filter
Frame: Aluminum or galvanized iron
Filter material: synthetic fiber with increasing density graduly, hot-melt edge banding
EN799 levels: G2, G3, G4, F5, F6, F7, F8
DIN 53438 Flame retardant standard: F1
Final resistance: (recommended) 250Pa-450Pa
Dust holding capacity: 300g-400g/m
Maximum air flow: 125% of rated air volume
Temperature: 100° C Temperature: 100%
How often should I replace this Paper Frame Pre-Filter?
Usually, we recommend checking it every 1 to 3 months. If the filter looks very dark or if you notice the air flow is getting weak, it is time for a quick and easy replacement.
Will the paper frame fall apart if it gets wet?
No. The frame of this Paper Frame Pre-Filter is made of special moisture-resistant cardboard. While it is not meant to be soaked in water, it stays strong and stiff even in very humid air.
Is this Paper Frame Pre-Filter recyclable?
Yes. Since the frame is paper and the media is synthetic, this Paper Frame Pre-Filter is much easier to dispose of and recycle compared to heavy metal filters.
Can this Paper Frame Pre-Filter catch tiny bacteria or viruses?
This is a G4 level filter, meaning its main job is to catch larger dust, hair, and lint. For bacteria, this Paper Frame Pre-Filter works together with a "High-Efficiency" (HEPA) filter which sits behind it.
Can I wash this Paper Frame Pre-Filter?
No. This Paper Frame Pre-Filter is designed to be disposable for better hygiene and performance. Because it is very low-cost, replacing it with a new one is more effective than trying to wash it.
