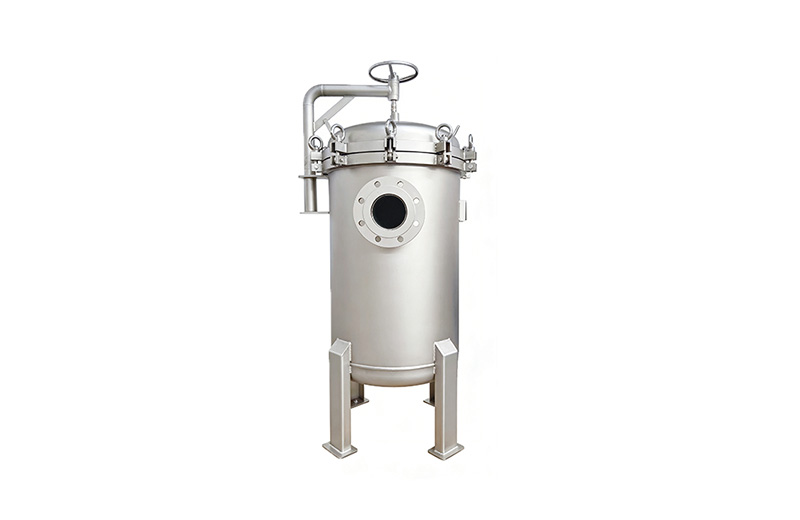

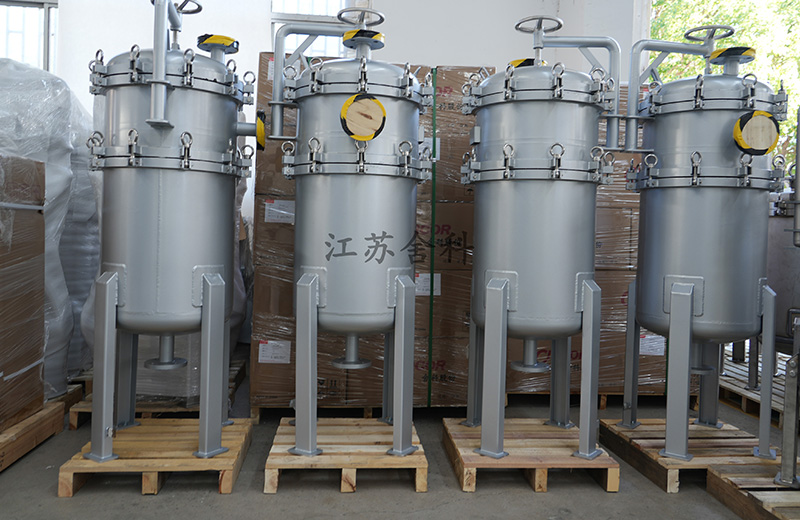

Considering the need for high dirt holding capacity or high fow fltration in many applications, we have designed andmanufactured the MFL series of muli-bag filters. The muli-bag design generally provides regular 3-12 bags, and thesingle machine can up to 24 bag. The rocker arm bag filter adopts a quick-opening design and has an upper lid to assistin lifting the boom, which is an economical, safe and reliable filter.
Industry Expertise
Factory Price
OEM/ODM Services
| Technology Specification | |||||||
| Product Dimensions | Bag No.3 | Bag No.4 | Bag No.6 | Bag No.8 | Bag No.12 | Bag No.17 | Bag No.23 |
| A | 250mm | 225mm | 300mm | 200mm | 220mm | 250mm | 250mm |
| B | 520mm | 527mm | 450mm | 528mm | 528mm | 450mm | 535mm |
| C | 400mm | 450mm | 520mm | 600mm | 680mm | 750mm | 820mm |
| D | 450mm | 500mm | 600mm | 750mm | 950mm | 1050mm | 1200mm |
| E | 456mm | 506mm | 608mm | 758mm | 960mm | 1062mm | 1212mm |
| F | Ф18 | Ф18 | Ф18 | Ф18 | Ф24 | Ф24 | Ф24 |
| H | 1385mm | 1360mm | 1435mm | 1435mm | 1560mm | 1600mm | 1830mm |
| Inlet/Outlet（N1/N2） | DN80 | DN100 | DN150 | DN150 | DN200 | DN250 | DN250 |
| Pressure Gauge/Vent(N3) | Rc1/4" | ||||||
| Drain Port(N4) | Rc1" | ||||||
| Volume | 180L | 225L | 274L | 450L | 750L | 995L | 1336L |
| New Weight | 155kg | 210kg | 255kg | 315kg | 620kg | 880kg | 1000kg |
| Selection Table | |||||||
| CF Brand code | MFL Shell Type | 04 Number of Filter Bags | 02 Filter bag size | E Material | 10 Design pressure | D Flange Standard Interface Form | 50 Connection Type |
| CIRCOR FILTER | Rocker Arm Filters | 03:3bags 04:4bags 06:6bags 08:8bags 12:12bags 17:17bgs 23:23bags | 01:Ф180*420 02:Ф180*810 | E:S30408 SL:S31603 C:Carbon Steel TA:Titanium Alloy B:Duplex Stainless Steel L:904L | 06:0.6Mpa 10.:1.0Mpa 16:1.6Mpa | D:DIN/GB Flange Standard A:ANSI Flange Standard J:JIS(Japanese)Flange Standard B:BSP Thread Standard N:NPT Thread Standard V:V-Clamp C:Tri Welded Pipe Connection S:Sanitary Thread Standard | 40:DN40 50:DN50 80:DN80 100:DN100 |
Core Advantages
1.Fast and safe, simple and efficient, with high productivity.
2.Economical and practical, high pressure resistance, good sealing performance.
3.The filter bag support is made of electropolished stainless steel porous supportfilter basket.
4.Sealed with high-quality 0-ring, convenient and reliable.Side-in-bottom filtration method, sewage discharge is more thorough.
5.Tangential outlet and ring bolt design.The standard mode is 3~23 bags (No. 1 bag and No. 2 bag).
6.Good sealing performance between the filter bag and the filter housing,because of its unique three-point filter bag fixing method.
How long is the delivery cycle?
We maintain a consistent 2-week lead time for all filter housings, including standard, multi-bag, and custom units with specialized linings or heating jackets. To ensure quality, every vessel undergoes a 1.5x hydro-pressure test before dispatch.
Are you a direct manufacturer or a trading company?
We are a direct factory with over 14 years of experience in industrial filtration. Buying from us means you get factory-direct pricing and direct technical support from the people who actually build the filters.
What can be the filtration accuracy?
Filtration accuracy depends on the filter media used. For our bag filter systems, the accuracy can reach as fine as 0.5 microns.
What material options are available for highly corrosive fluids?
Beyond standard SS304/316L, we provide Fluoropolymer linings or **PPH housings** for strong acids and alkalis. To ensure chemical compatibility, we utilize Viton or PTFE seals. We can customize the material pairing based on your specific medium to ensure long-term structural integrity in reactive environments.
How is equipment safety ensured under high-temp or high-pressure?
Every housing is engineered to withstand up to 4.0 MPa and temperatures up to 260°C. The clamp quick-opening design distributes tension more evenly than traditional swing-bolts, effectively preventing thermal deformation of the sealing surface and ensuring zero-leakage operation under extreme conditions.
