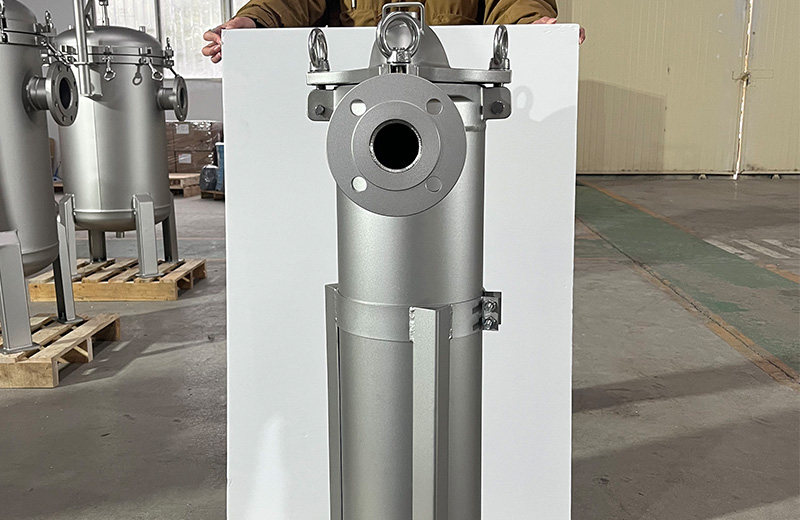

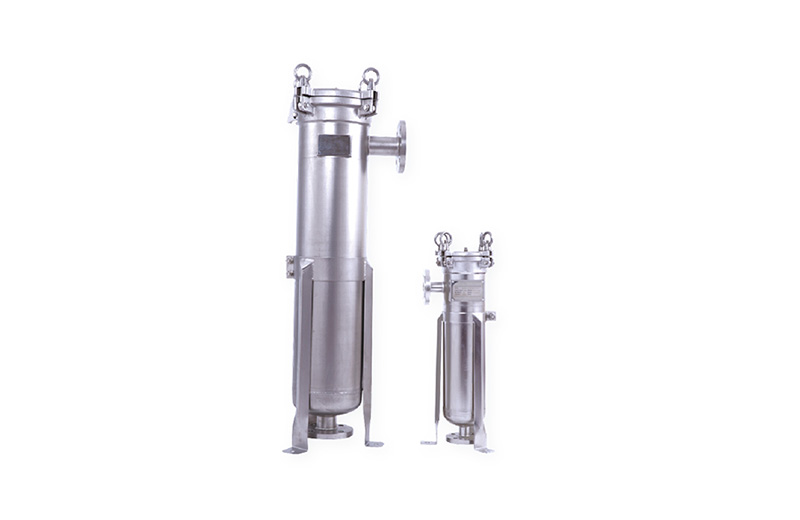

The Side Entry - Single Bag Series operates from the side to the bottom, and the side inlet pipe can be adjusted to meet specific directionalrequirements. The filter has a simple structure and is easy to clean inside. The bolt-on and integrally smelted filter capguarantees a complete seal even at high pressures, making it the perfect choice for economical filters.
Industry Expertise
Factory Price
OEM/ODM Services
| Technology Specification | ||||
| Product Dimensions | Bag No.1 | Bag No.2 | Bag No.3 | Bag No.4 |
| A | 204mm | 204mm | 133mm | 133mm |
| B | 520mm | 900mm | 345mm | 460mm |
| C | 180mm | 180mm | 150mm | 150mm |
| D | 695mm | 1075mm | 503mm | 618mm |
| E | 680mm | 1060mm | 491mm | 606mm |
| F | 195mm | 405mm | 100mm | 205mm |
| G | 285mm | 285mm | 105mm | 105mm |
| Inlet/Outlet（N1/N2） | DN25-50 | DN25-50 | DN25-50 | DN25-50 |
| Pressure Gauge/Vent(N3) | Rc1/4" | Rc1/4" | Rc1/4" | Rc1/4" |
| Volume | 17L | 28L | 3L | 4L |
| Selection Table | |||||||
| CF Brand code | SF Shell Type | 01 Number of Filter Bags | 02 Filter bag size | E Material | 10 Design pressure | D Flange Standard Interface Form | 50 Connection Type |
| CIRCOR FILTER | GF:Flat Cover TF:Turtleback | Single bag filter | 01:Ф180*420 02:Ф180*810 03:Ф102*230 04:Ф102*380 | E:S30408 SL:S31603 C:Carbon Steel TA:Titanium Alloy B:Duplex Stainless Steel L:904L | 10:1.0MPa 16:1.6MPa | D:DIN/GB Flange Standard A:ANSI Flange Standard J:JIS(Japanese)Flange Standard B:BSP Thread Standard N:NPT Thread Standard V:V-Clamp C:Tri Welded Pipe Connection S:Sanitary Thread Standard | 40:DN40 50:DN50 |
Core Advantages
1.Economical filter, meeting most usage requirements.
2.Built-in elastic compression ring ensures filter bag sealing.
3.Unique closed design to avoid side leakage.
4.The height of the legs can be adjusted at will.
5.Inlet and outlet forms are available in a variety of standards and locationsfor easy installation on the piping system.
6.Design pressure from 6bar~20bar.
7.Filters are available in carbon steel, 304 stainless steel, 316 stainless steeland others pecific materials.
How long is the delivery cycle?
We maintain a consistent 2-week lead time for all filter housings, including standard, multi-bag, and custom units with specialized linings or heating jackets. To ensure quality, every vessel undergoes a 1.5x hydro-pressure test before dispatch.
Are you a direct manufacturer or a trading company?
We are a direct factory with over 14 years of experience in industrial filtration. Buying from us means you get factory-direct pricing and direct technical support from the people who actually build the filters.
What can be the filtration accuracy?
Filtration accuracy depends on the filter media used. For our bag filter systems, the accuracy can reach as fine as 0.5 microns.
What material options are available for highly corrosive fluids?
Beyond standard SS304/316L, we provide Fluoropolymer linings or **PPH housings** for strong acids and alkalis. To ensure chemical compatibility, we utilize Viton or PTFE seals. We can customize the material pairing based on your specific medium to ensure long-term structural integrity in reactive environments.
How is equipment safety ensured under high-temp or high-pressure?
Every housing is engineered to withstand up to 4.0 MPa and temperatures up to 260°C. The clamp quick-opening design distributes tension more evenly than traditional swing-bolts, effectively preventing thermal deformation of the sealing surface and ensuring zero-leakage operation under extreme conditions.
